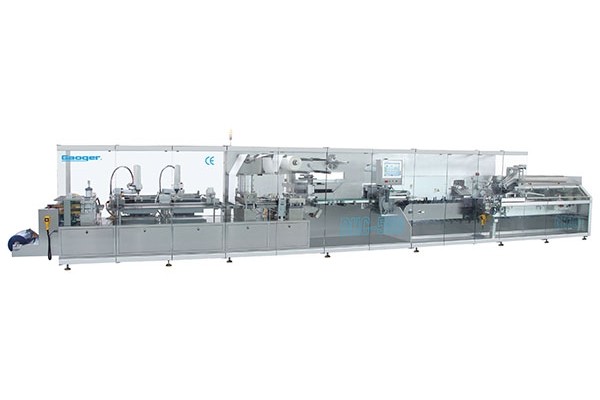

DHC-550P Injection Blister Packing Cartoning Packaging Line ( horizontal loading)

Product Description

1,Excelient operating performance and high efficiency product output

2,Modular design structure,with fast adjustment and replacemeent function

3,An efficient and stable linkage mechanism with multiple servo control systems

4,Conforms to the height of ergonomic design and makes the operation more convenient.

5,Meets cGMP design and meets the highest standards required for pharmaceutical production

Technical parameters
Max Output:

300 cartons/min 3000bottles/min

Max Forming area and depth: 480×160×30mm
Leaflet size : (100-200)×(100-150)mm
Carton material: 250-350g/m2
Carton Size: (75-200)×(25-100)×(15-80)mm
Leaflet material:
50-70g/m2
Air compressor 0.6-0.8/Mpa≥0.8m3/min
Power 380V 50HZ 8Kw(220V, 60Hz)
Weight  7500kg
